Both systems are virtually the same hardware configuration:
Yaesu System Fusion DR1X repeater
50W power amplifier
SCOM 7330 controller.
Motorola GM300 VHF radio (remote base)
Six cavity duplexer
Astron SS50M power supply
The Marlborough remote base can access more than 32 repeaters across Massachusetts, Rhode Island and New Hampshire.
ModesThe Marlborough remote base can access more than 32 repeaters across Massachusetts, Rhode Island and New Hampshire.
| Mode | Access | Remote Base |
| Analog FM w/Remote Base | PL 79.7 | Available |
| Analog FM Local Only | PL 100.0 | Not Available |
| YSF Digital | No DSQ code required | Not Available |

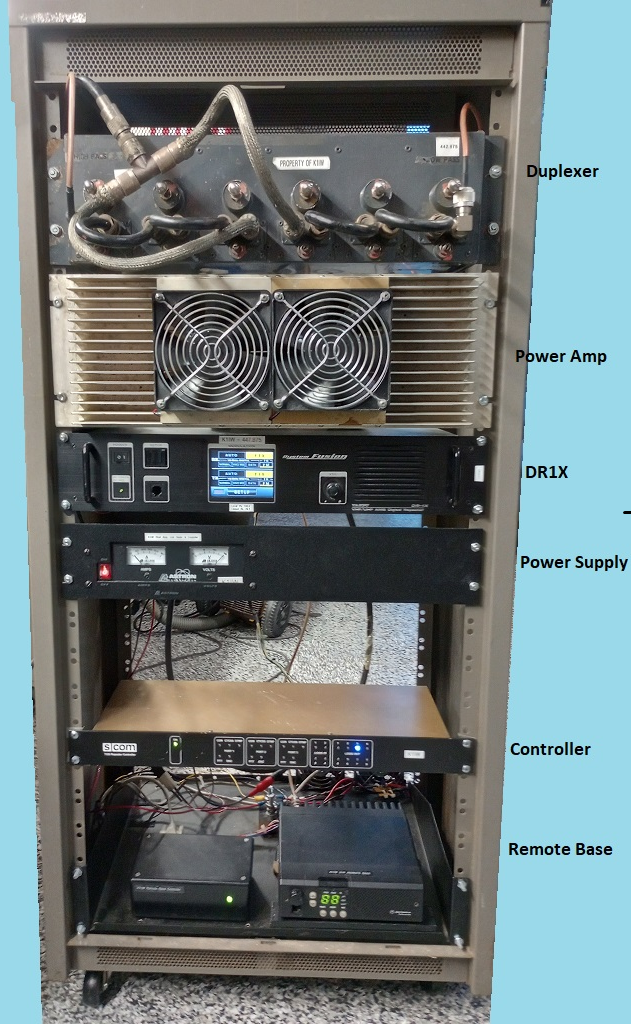

Marlborough Repeater

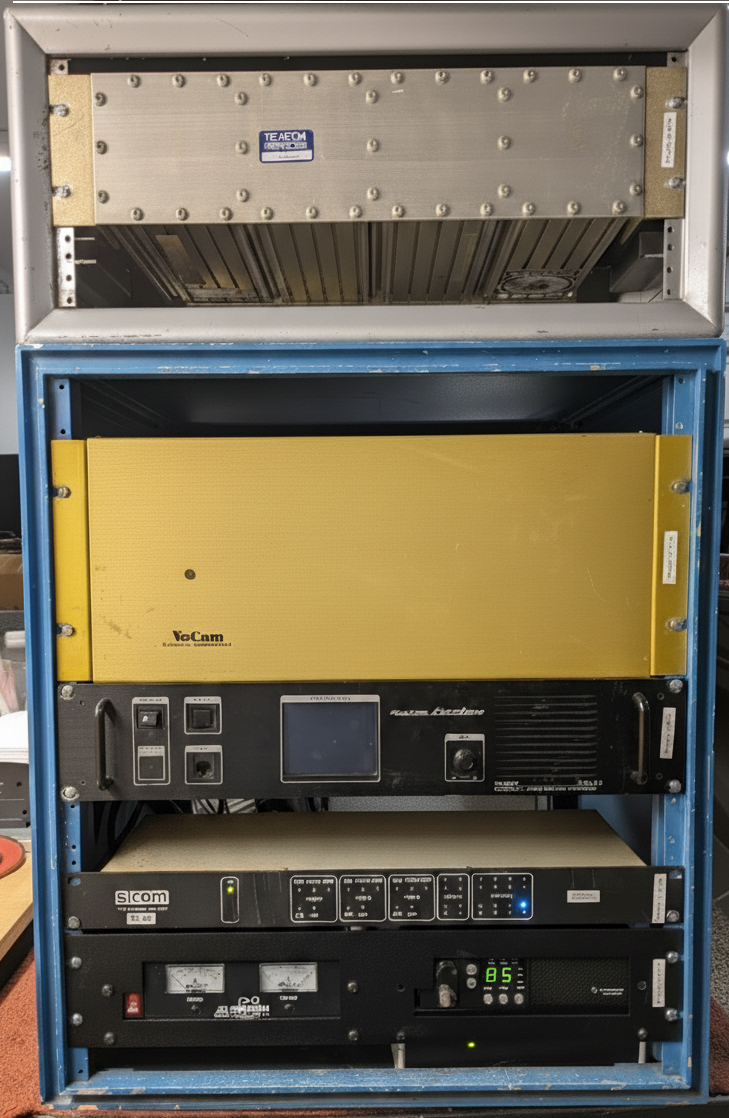

Boxborough Repeater
DTMF Commands (must be entered in analog mode)General Repeater and Remote Base Receiver Commands | |||
| 84 | Say Time & Date | ||
| A | Say Link Status | ||
| Axxx | Link Remote Base (see below) | ||
| AD | Delink Remote Base | ||
| B | Toggle Link Receiver Mode CSQ/PL | ||
Remote Base Channel Selection
|
Due to the Marlborough site's high location, the remote base can hear many repeaters on the same frequency. The remote base TX PL is set to the one for the primary location shown in the table, which corresponds to the repeater listed first. Other repeaters that might be heard are in the rightmost column. Although you may hear the other repeater, you won't be able to transmit into it because the link TX PL tone is set to the primary repeater.
Currently, the remote bases on the two systems are programmed identically. This may change as the Boxborough site cannot access several of the sites further South. | ||||||
| DTMF Code | Boxborough can access |
Frequency | Remote Base Tone | Primary Location | When Link RX PL is disabled, you may also hear: |
|
| tx | rx | |||||
| Massachusetts | ||||||
| A43 | Yes | 145.43 | 146.2 | Belmont, MA | ||
| A12 | Yes | 147.12 | 146.2 | Billerica, MA | ||
| A23 | No | 145.23 | 88.5 | 100.0 | Boston, MA | |
| A82 | Weak | 146.82 | 146.2 | Boston, MA | ||
| A11 | Yes | 145.11 | 110.9 | 123.0 | Concord, MA | DMR repeater in Shapleigh, ME |
| A47 | Yes | 145.47 | 136.5 | CSQ | Danvers, MA | |
| A00 | No | 147.00 | 67.0 | Dartmouth, MA (W1AEC) | Saddleback Mt, NH (W1SRA) | |
| A15 | Yes | 147.15 | 100.0 | Framingham, MA | ||
| A37 | Yes | 145.37 | 136.5 | Gardner, MA (N1WW) | Coventry, RI (N1JBC) | |
| A13 | Weak | 145.13 | 107.2 | Gloucester, MA | ||
| A39 | No | 145.39 | 67.0 | Marshfield, MA | ||
| A61 | No | 146.61 | 146.2 | Mendon, MA | ||
| A985 | Yes | 146.985 | 88.5 | Milton, MA (W1UQ) | Leyden, MA (KB1BSS) | |
| A36 | No | 147.36 | 67.0 | CSQ | Newton, MA | |
| A715 | Yes | 146.715 | 146.2 | North Reading, MA (KC1US) | Holyoke, MA (K1ZJH) | |
| A25 | No | 145.25 | 77.0 | Norwell, MA | ||
| A685 | No | 146.685 | 82.5 | Plymouth, MA | ||
| A315 | Yes | 147.315 | 100.0 | Fitchburg, MA (WB1EWS) | Plymouth, MA (WG1U) | |
| A67 | Yes | 146.67 | 146.2 | Quincy, MA | ||
| A88 | No | 146.88 | 118.8 | Salem, MA | ||
| A865 | Yes | 146.865 | 103.5 | Sharon, MA | ||
| A255 | No | 147.255 | 67.0 | Truro, MA | ||
| A64 | Yes | 146.64 | 136.5 | Waltham, MA | ||
| A79 | Yes | 146.79 | 146.2 | Weston, MA | ||
| New Hampshire | ||||||
| A85 | Weak | 146.85 | 85.4 | Derry, NH | ||
| A73 | Yes | 146.73 | 88.5 | Hollis, NH (N1IMO) | Barnstable, MA (W1SQL) | |
| A045 | Yes | 147.045 | 100.0 | Nashua, NH | ||
| A94 | No | 146.94 | 114.8 | Pembroke, NH | ||
| Rhode Island | ||||||
| A70 | No | 146.70 | 123.0 | North Providence, RI | ||
| A76 | No | 146.76 | 67.0 | North Scituate, RI | ||
| A19 | No | 145.19 | 67.0 | West Greenwich, RI | ||
